It comprises an enclosure in steel or plastic a contactor start contact link wires and stop start buttons. There are two types of circuits in the dol starter diagram given above.
. Three Phase Motor Power Control Wiring Diagrams Diagram Schneider Direct Online Starter Wiring Diagram Full Version Hd Quality Wiring Diagram Rtmdatabase Interassos Uvsq Fr Diagram Delta Wiring Diagram 3 Phase Full Version Hd Quality 3 Phase Ggwiring9 Cattivissimome It
3 Phase Dol Starter Motor Diagram Dol Starter Motor Starter Diagram Youtube
3 Phase Dol Starter Motor Diagram Dol Starter Motor Starter Diagram Youtube The direct on line motor starter dol is designed to switch a single or three phase induction motor at rated voltage.

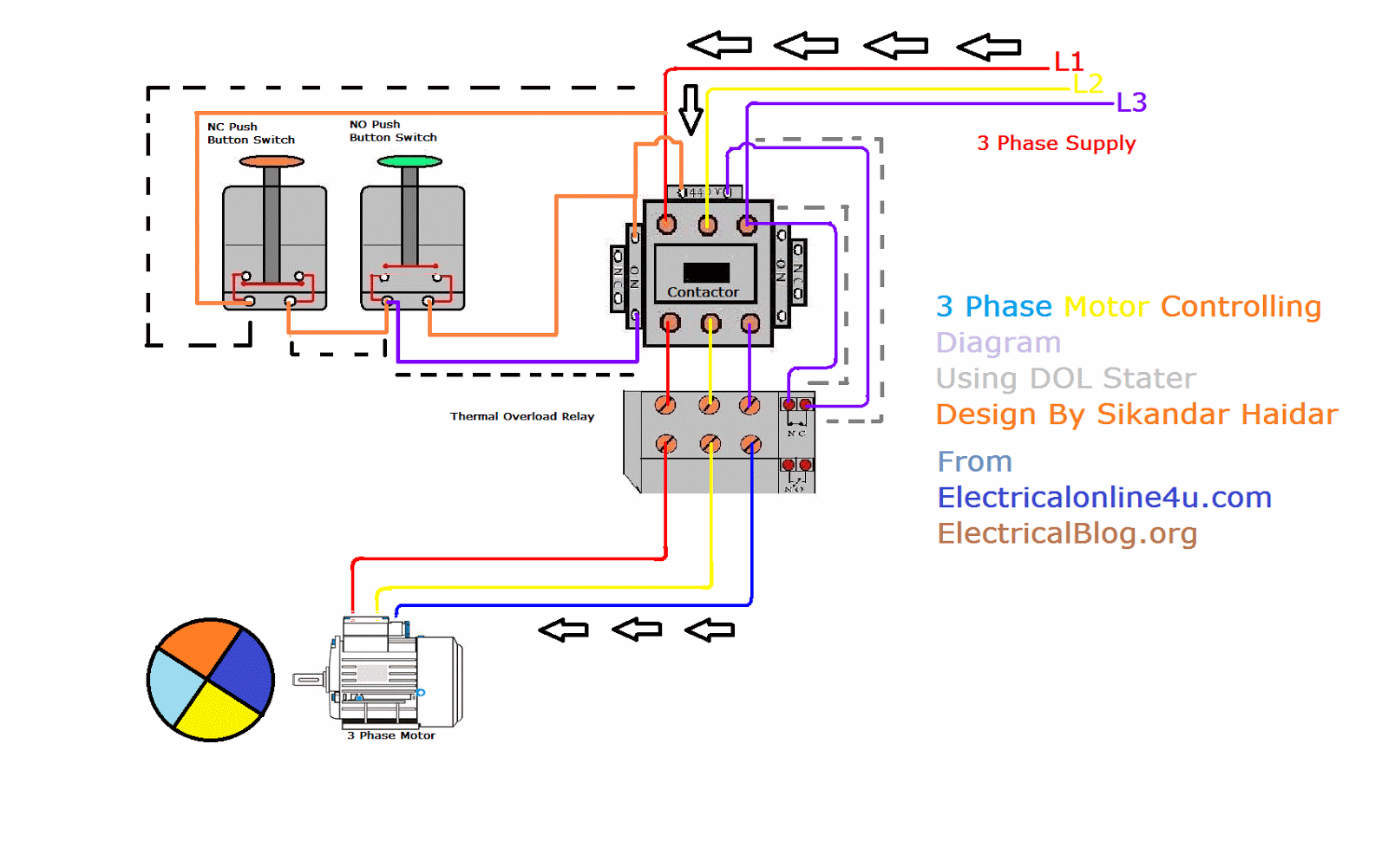

. 3 phase motor wiring diagrams electrical info pics. A wiring diagram of a dol starter. The contactor connection with thermal overload relay and the motor connection with overload relay is shown.
Working principle of dol starter. In the below dol starter wiring diagram i shown a molded case circuit breaker a magnetic. The r y b is the three phase 380 volts supply.
Wiring diagram of dol starter. Simple dol wiring diagram. In the above dol starter diagram.
The coil of the contactor is 380 vac. 1 22kw motor with a flc of 5 amps at 415volts will need a tr2 d09310 overload rated at 400 600. Three phase systems are extremely common in industrial and commercial settings.
Single phase motor dol starter connection diagram. The control wiring will be as that for the 240vac coil version of the 3 phase system. Dol starter is starting method3 phase induction motorpdfdirect online starter wiringdol control diagramconnection working principlepower diagramcircuit advantagesdisadvantages.
Wiring diagram of dol starter. R phase y phase and b phase to the induction motor terminals. Despite this direct connection no harm is done to the motor.
3 phase wiring for dummies understanding motor connections. A dol motor starter contains protection devices and in some cases condition monitoring. In a dol starter an induction motor is connected directly across its 3 phase supply and the dol starter applies the full line voltage to the motor terminals.
The dol starter connects the 3 phase voltage supply ie. Direct on line starter wiring diagram. A pcb from another source can be used in replacing the electronics in a standard device or giving communications to a custom controller.
The thermal overload is supplied as a separate item. Dol starter wiring diagram for three phase motor to wire a 3 phase motor the first thing to wire is a circuit breaker which is a disconnect and connecting point then we will get the supply from the circuit breaker and connect the supply to the contactor or starter and then to the overload relay. This is a starting method that reduces the starting current and starting torque.
3 phase motor wiring diagram fresh mem dol starter wiring diagram. Although these systems may seem intimidating at first a walkthrough on 3 phase wiring for dummies will help clarify the whole situation. The control circuit and the power circuit.
They can also be found in large residential complexes and appliances requiring a large amount of power. 3 phase motor contactor wiring diagram. The main heart of dol starter is relay coil.
And the normally open and normally close push button shown. Normally it gets one phase constant from incoming supply voltage a1when coil gets second phase relay coil energizes and magnet of contactor produce electromagnetic field and due to this plunger of contactor will move and main contactor of. We connect the circuit breaker contactor and.
